CHAI L-320
CHAI L-320 for Longwave Infrared (Thermal), 8-12 microns
(click to download data sheet)

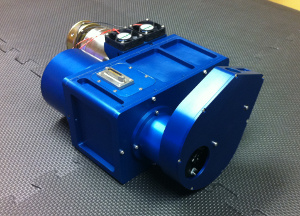

CHAI L-320 Instrument (preliminary design)
Final product may differ from image shown
The CHAI L-320 is based upon the compact Dyson spectrometer, with cooled optics and large pixels to significantly improve sensitivity. Developed especially for Brandywine Photonics, the 320×256 HgCdTe FPA is sensitive from 8 to 12-micron wavelengths and cooled to 65 K. Two integral blackbody panels make calibration easy with a single command.
Applications
- Earth Sciences (volcanology, minerology, ecology)
- Mineral Exploration
- Vegetation Evapotranspiration
- Gas Emission Detection
Platforms
- Airborne
- Stabilized Turret
- Ground Pan-tilt Mount
- Vehicle-based
Technologies
- F/1.25 Dyson Spectrometer
- HgCdTe Focal Plane Array 8-12 microns
- EXPRESSO™ software
Contact us for application-specific performance modeling and benchmarking.
